Sheet metal processing: the choice and application of plate rolling machine

In today’s rapidly developing industrial production, the metal plate forming technology is constantly being updated. Plate rolling machines，which are important for bending metal sheets, play an important role in determining both the quality of products and the production speed.  Since there are many brands and models of plate  roller available, choosing the right one for certain characteristics of metal sheets is a significant challenge in metalworking industry.In in this article, based on the characteristics of metal materials, we will detail the basics, types and options of plate rolling machines. In addition, it discusses the considerations of choosing the right machine and provides informed guidance and recommendations for the processing of metal plates.

The basic principle of the Plate rolling machine

Plate rolling machine is a metal processing equipment that rolls metal sheets into cylindrical, conical or other shapes. The principle of operation is based on the principle of determining a circle consisting of 3 points. By adjusting the distance and pressure between the upper and lower rollers, continuous bending deformation of the metal plate is achieved Decently. The basic structure of the metal rolling machine includes roller, transmission system, hydraulic system and control system. Different types of metal rolling machine have different structure and working principle, but the purpose is to achieve high precision rolling of metal plate.

Types of Plate Rolling machine

3 Roller Rolling machine

3 roller rolling machine is the one of the most common type of plate rolling machine. Its structure consists of two fixed lower cylinders and an upper cylinder that can move vertically. The design of this machine is relatively simple and easy to operate. It is suitable for general sheet metal rolling needs. 3 Roller plate rolling machine is generally divided into symmetrical type and asymmetrical type. The upper roller of the symmetrical 3 roller plate rolling machine rolls to the middle of the two lower rollers The upper roller of the asymmetrical 3 roller plate rolling machine rolls to the middle of the thicker or thicker rollers.

4 Roller Rolling machine

The 4 roller rolling machine is an upgrade from the traditional 3 roller plate. Typically, it includes an extra roller placed on or next to the top roller to provide more bending force and better control of the shape of the metal sheet, and this type of machine really shines because it offers greater accuracy and flexibility when using complex or extremely precise metal sheets. The 4 roller rolling machine usually comes with a highly automated and sophisticated CNC system. This allows you to create more complex rolling paths and shapes.

2 Roller Rolling machine

The 2 roller rolling machine is a simple equipment for sheet bending. Machines of this type make ventilation ducts or car exhaust pipes.

The advantages of using a 2 roller plate rolling machine include low cost, ease of use and minimal spacere quirements.Butthere are limits to this. It is better for rolling thinner sheets or creating larger, cylindrical shapes. It is not as powerful as some other machines for more complex or thicker metalwork.Key features of high performance plate rolling machines

Key features of a high-performance roller machine

The high-performance roller machine provides accuracy from an altitude sensor and a system that gives feedback. These allow the machine to track and reposition the roller, and the pressure works simultaneously. In this way, it ensures that the rolled metal comes out in the correct size and shape.

Powerful power system

The powerful motor and hydraulic system of the machine not only provide power. They also provide constant strength when rolling thick layers or very strong materials. This makes the rolling process smooth and consistent.

Automatic operation

The automatic control system reduces manual intervention, reduces the possibility of operation error and improves production efficiency. The integration of the CNC system allows the operator to control the entire rolling process through simple programming.

Stability and reliability

The high-performance  rolling machine is designed to last for a long time and remain reliable. They use first-class materials and are made with a very careful process. This ensures that the machine continues to work well even when used in large quantities and in harsh conditions.

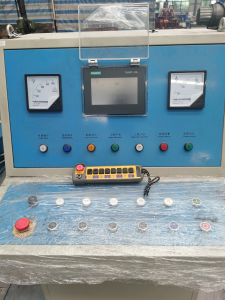

User-friendly interface

The intuitive touch screen and graphical user interface (GUI) enable the operator to easily set parameters, monitor the situation and perform fault diagnosis.

Versatility

The versatility of the high-performance plate roller machine is that it can be simple cylindrical rolling or complex conical or irregular shaped rolling, which can meet the needs of different industries.

Metal material properties and selection

The physical and chemical properties of metal materials directly affect the reaction of the material during the rolling process and the quality of the final product, so a detailed description of the properties of common metal materials and recommendations for choosing the right plate rolling mill are given below.

Carbon steel

Features: Carbon steel has a low carbon content and provides good machinability and weldability. As the carbon content increases, the strength of carbon steel increases, but the weldability and ductility decrease.

Selection: Light carbon steel is suitable for standard rolling machines, while medium and high carbon steel require plate rolling machines with higher specifications. These machines must have stronger torque and wear resistance to overcome the higher yield strength.

Stainless steel

Features: Stainless steel is preferred due to its excellent corrosion resistance, but it is prone to hardening during processing and is susceptible to hot cracking.

Selection: The 4 roller plate rolling machine is ideal because it offers high precision and the ability to process complex shapes. In addition, stainless steel rolling requires a plate roller machine with an effective cooling system and precise force control to prevent the material from overheating and cracking.

Aluminum alloy

Features: Aluminum alloy is known for its light weight, high strength and excellent thermal conductivity, but its hardness is relatively low.

Selection: The 3 roller plate rolling machine  is suitable for aluminum alloy rolling, as it provides fast response and precise control, and helps to maintain the high-precision rolling of aluminum alloy while reducing material damage.

Copper alloy

Features: Copper alloys are excellent in electrical and thermal conductivity, but are generally less rigid than iron-based alloys, which makes them easier to form during the rolling process.、

Selection: The 2 roller plate rolling machine is especially suitable for rolling copper alloys when rapid prototyping and reduced material hardening are required. In addition, the 2 roller plate rolling machine is cost-effective, and the cost is suitable for small and medium enterprises applications.

Titanium alloy

Features: Titanium alloy is rated for high strength, low density and excellent corrosion resistance, but special temperature and pressure requirements may be required when processing.

Selection: Choose the plate roller machine, which can provide precise temperature control and pressure regulation to meet the special processing needs of titanium alloy.

Special alloys

Features: Some professional alloys may have unique physical and chemical properties, such as ultra-high strength, resistance to high temperatures or resistance to extreme environments.

Selection: When choosing plate roller machine for these materials, you can choose special rolling machines or customized plate rolling machines, which may require special processing technology.

Guide to selecting the right plate rolling machine

Processing requirements

When you choose  plate rolling machines, start by determining the shape and size of the metal sheet you are working with. This ensures that the machine you choose can process the exact size you need. Whether it is a small, special order or a large batch, think about how much you will produce at the same time.

Also, the accuracy of the machine is the key to how good the product is. Check whether the appropriate level of roundness and flatness can be achieved and meet other required accuracy standards.

Taking all of these factors into consideration, you can find the right machine for your needs to ensure that production runs smoothly and produces a high quality product.

Material properties

When choosing a plate rolling machine, be sure to work with the ingredients that you use often. This means that it should be able to withstand without damaging the strength of the material during rolling. In addition, the machine must adapt to different hardness levels, which is critical when using very hard materials.

In addition, it is important that the plate roller machine can accurately control how far the material without going too far. This means that you need to have a feature that allows for very fine-tuning. As for corrosion-resistant materials, choose roller plate rolls and parts that do not wear easily. This makes the machine last longer and guarantees the work quality.

In summary, the correct choice of plate rolls depends on the actual understanding of the material being studied. This helps to ensure that the process is efficient and the final product is of high quality.

Budget and cost-effectiveness

When you choose plate rolling machines, start by setting a complete budget. This should cover more than the price of the machine; transportation, installation and then teaching your workers how to use it, conducting a comprehensive cost-benefit analysis. Look at the full cost of having different machines, they cost to run every day and include the money needed for regular maintenance.

Also try to figure out how much the machine will pay for itself. Choose a machine that can provide you with a profit in a shorter time and make financial sense. In this way, you ensure that your investment turns into growth and profit quickly and well for your company.

Comprehensive factors

When choosing plate rolling machines, the level of automation is a key factor. It is necessary to consider whether the equipment has automatic functions such as automatic feeding, rolling and unloading, which will directly affect production efficiency and labor costs. At the same time, ease of operation is also very critical. Equipment that is easy to operate and maintain should be selected to reduce the training requirements for operators and improve work efficiency. Safety cannot be ignored. It is necessary to ensure that the plate roller machine meets all safety standards and has necessary safety features such as emergency stop and protective devices to ensure the safety of operators.

In addition, environmental adaptability is also important. Plate rolling machines that can adapt to specific working environment conditions should be selected, whether it is temperature, humidity or dust. Technical support and service are also one of the determining factors. Choosing manufacturers that provide comprehensive technical support and high-quality after-sales service can get timely and effective help during the operation of the equipment. Finally, energy saving and environmental protection are important indicators of modern industrial equipment. Plate rolling machines with high energy efficiency and low environmental impact should be selected to reduce energy consumption and achieve green production .

Future development and technological innovation

The intelligent upgrade of plate roller machines and the integration of the Internet of Things are two major trends in current technological development.

Plate rolling machines are becoming smarter by using high-tech information systems. They are more automated and better at analyzing data, which helps improve how quickly things are done and the quality of what is done. For example, some machines have intelligent features that help the parts work together smoothly. If there is a problem with the electronics, these features make sure that the rolled product is still well made. This is an important development that makes the whole process more reliable.

In terms of IoT integration, the plate rolling machine realizes remote monitoring and real-time data exchange through IoT technology. This not only improves equipment reliability, but also reduces downtime. IoT applications enable the integration of plate rolling mills into a wider range of intelligent production systems for predictive maintenance and more efficient production management.

Technological innovation

As the industrial workhorses, the plate metal roller machine is becoming more and more important in modern industry with the advancement of technology and continuous innovation.

• Advanced production efficiency: With automation and intelligent technology, the plate rolling machine can achieve more efficient production operation and management, and improve manual intervention and work efficiency
•  Product quality optimization: The modern version of the rolling machine uses accurate control and control of product quality in real time to ensure the consistency and stability of product quality.

• Expanded scope: Plate rolling machines adapt to a wider range of materials and coating types, such as high-strength steel plates and composites, allowing them to be used more widely in areas such as automotive manufacturing, construction and aerospace.

• Energy saving and environmental protection: The modern version of the rolling machine has made progress in energy efficiency and environmental protection. It reduces energy consumption and environmental impact by meeting the sustainable development requirements of energy-saving design and green production technology.

Conclusion

Choosing a professional rolling machine manufacturer is very important to improve the quality of sheet metal processing, reduce costs and increase productivity. With a deep understanding of the basic principles, varieties, metal material properties and factors that should be considered when choosing a sheet metal rolling mill, the company can choose and use the equipment more scientifically.
